Check Shorting NGage QD

Check Shorting NGage QD

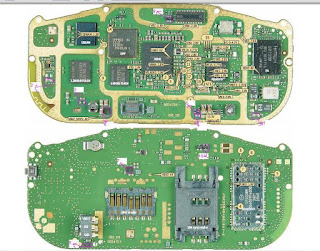

1. remove this coil mark in (1)...if u want to check is pf is short,.....
2. remove this coil mark in (2) ....if u want to check shorting throug ringer ic is gone or not...
3. remove this coil mark in (3)..if u want to check the shorting throug bluetooth ic is gone or not......
4. remove this coil mark in (4)..if u want to check the light ic is short....
5. remove boot ic mark in (5)..if u want to check shoting cause by boot ic if it is short replace it with new    one......
6. remove this smps ic mark in (6)... to check the shoting cause by this ic.........this ic make v corea volt for upp...
7. remove ic mark in (7)... this is memory card driver ic this also got +b from batery....remove it to check shoting is gone or not.......
8. remove this transistor mark in (8)...this is switching transistor for display light ic ....remove this if u want to check the shoting cause by this transistor....because this transistor got +b from batery......
9. remove this transistor mark in (9)...this is switching transistor for key pad light ....remove this if u want to check the shoting cause by this transistor....because this transistor got +b from batery......
10. remove this transistor mark in (10)...this is switching transistor for vibrator ....remove this if u want to check the shoting cause by this transistor....because this transistor got +b from batery......
11. at end remove uem to check shoting is gone or not.....
